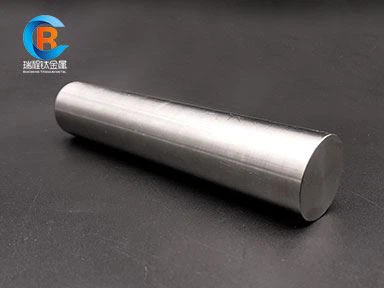

Forged Titanium Bar

1.Dimension: Dia(6-300)X≤L6000mm
2.Standard: ASTMB 348
3.Material: Ti-Gr2
4.Delivery time:15-25 days

We have a large market share in Nickle Bar, Titanium Plate, Gr2 Hexagon Bar field. Our products are widely sold at home and abroad, and have won wide praise and favor from our customers. We look forward to your attention, let's join hands now and embrace a better future together. We are in line with international trends, and continues to develop a reasonable structural model. The staffing of our various functional departments realized a coordinated and reasonable, closely connected model. We support our products with quality, the market with credibility, the brand with strict discipline, and the future with innovation.

1.Description

Item name	Gr2 round titanium bar
Standard	ASTM B348
MOQ	10kg
Surface	Machined/ polished /Ground
Condition	Annealing /Cold drawn
Delivery time	20-30days
Processing	Forging/ Rolling
Application	Industrial
Nearest Port	Shanghai
Certificate	SGS ISO9001-2008

2. Advantage：Gr2 round titanium bar has good physical and chemical properties, low density, light weight, non-magnetic, high strength, good corrosion resistance, it has good mechanical properties and weldability, Gr2 titanium bar is one of the titanium rod,which is widely used in chemical equipment, seawater desalination, ship parts, electroplating industry, etc.

3. Chemical requirements of the Gr2 round titanium bar

ASTM B348 Titanium Bar Chemical Composition
Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
GR 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/
GR 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/
GR 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/
GR 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/
GR 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/
GR 12	0.03	0.08	0.125	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

4.The tolerance of the Gr2 round titanium bar

ASTM B348 Titanium Bar Production Specification
Dimensions(mm)	Tolerance(mm)	Ovality(mm)
6.35-7.94	±0.13	0.20
7.94-11.11	±0.15	0.23
11.11-15.88	±0.18	0.25
15.88-22.22	±0.20	0.30
22.22-25.40	±0.23	0.33
25.40-28.58	±0.25	0.38
28.58-31.75	±0.28	0.41
31.75-34.92	±0.30	0.46
34.92-38.10	±0.36	0.53
38.10-50.80	±0.46	0.58
50.80-63.50	+0.79，-0	0.58
63.50-88.90	+1.19，-0	0.89
88.90-114.30	+1.59，-0	1.17

ASTMB348 Physical Properties
Grade	Tensile Strength Min	Yield Strength Min	Elongation 4D Min %	Reduction of rea Min%

Ksi	Mpa	Ksi	Mpa
1	35	240	25	170	24	30
2	50	345	40	275	20	30
3	65	450	55	380	18	30
4	80	550	70	483	15	25
5	130	895	120	828	10	25
7	50	345	40	275	20	30
9	90	620	70	483	15	25
9B	90	620	70	483	12	25
11	35	240	25	170	24	30
12	70	483	50	345	18	25
23	120	828	110	759	10	25

Ask and answer

1. What can you do?

Baoji Ruicheng Titanium Metal Co.,Ltd., is located in High-tech Development Zone Baoji Shaanxi China which is famous as “Chinese titanium city”. Ruicheng is a high-tech enterprise featured with strong power,advanced technology, high quality of product and good service. In recent years,Depending on abundant industrial resource of “Chinese titanium city,”company has strong non-ferrous metal research and manufacturing strength, as well as complete titanium industrial chain chain. Ruicheng is mainly in charge of deep processing research, Design and production of industrial&civil titanium as well as other rare metals, and gradually establishes a set of fine and complete production process

2. What products can you supply?

A,Titanium anode B, titanium bar C, titanium sheet D,titanium screw E, titanium tube F, Titanium wire G, titanium proceeding parts

3. What standards of the Gr2 round titanium bar?

ASTMB 348 ASTM F136 ASTMB381 ASTM F67 AMS4928

4. What dimension about the Gr2 round titanium bar can you supply?

Dia(6-300)X ≤L6000mm

5. What is your processing method?

Forging and Rolling

6. How about the finished surface about the Gr2 round titanium bar?

Polished, Ground and Machined.

7. What is the condition about the Gr2 round titanium bar?

Annealing, Cold drawn.

8.We can also melt special alloy ingot according to customers’ requirement

We have always attached importance to the introduction of advanced management mode and high quality talents, and all the main production equipment adopt high-end brands to ensure the stability of Forged Titanium Bar quality. Our company has rich experience in product production management, our staff are skilled, advanced machinery and equipment. Based on the basic concepts of technological innovation, market innovation and management innovation, we actively explore and operate practically.
