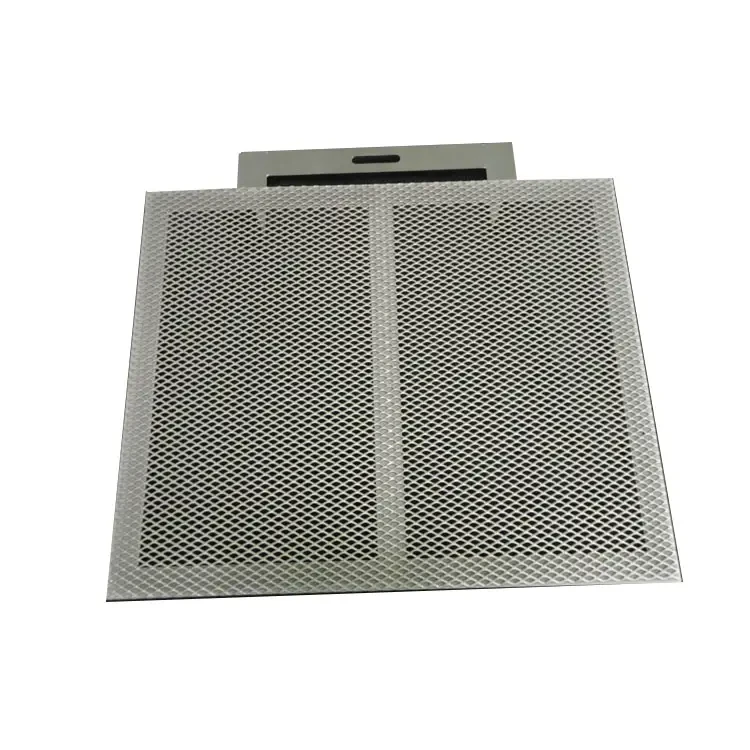

2x4 Inch Mesh Platinized Titanium Anode Mesh Plating Rhodium Palladium
Product Name:2x4 Inch mesh platinized titanium anode mesh plating rhodium palladium
Application:Electroplating, water electrolysis
Material:Gr1 titanium as substrate
Type:Mesh, sheet/plate, rod/wire, pipe/tube
Products Description
| Product Name | 2x4 Inch mesh platinized titanium anode mesh plating rhodium palladium |
| Material | Gr1 Titanium as substrate, Ruthenium-Iridium oxide or platinum as coating |
| Technology |
Sand Blasting, Acid Washing, Brush Coating |
| Coating Thickness |
12micron--mixed precious metal oxide coating 0.5~10micron--platinum coating |
| Dimension & Shape |
Different dimension and shape is available, or according to client's drawings |
| Working Equipment |
Water ionizer Water electrolysis The reaction on the anode and cathode of water electrolysis |
| Working Principle |
H2O=OH- +H+ Cathode: H++e=H2H++2eH2↑2H7O+2e=2OH-+H3 2H++e= H2↑ Anode:4OH-4e=2H3O++O2↑2H2O-4e=4H++O2↑ 4OH-4e=2H2O+O2↑ |
| Features |
1) Stable working ability under high current density & Voltage 2) High electrolysis efficiency 3) Stable electrolysis ability 4) High anti-corrosion property 5) The matrix can be recycled and recoated with MMO for reuse 6) Long working life etc. |
| Application |
Water ionizer, alkaline & Acidic water production, deionized water in cosmetic, disinfection, clean etc. |
| Remarks |
1) Titanium anode also called MMO anode, DSA & Insoluble anode 2) Titanium Cathode also be provided |
| Packing |
Carton or plywood case outside, or according to client’s demand |
platinum coating titanium anode for produce oxygen
Platinized titanium anode can be taken as a high quality and economical substitute of Platinum anode. It is made up of titanium substrate material and platinum plated(0.5~5um) on the titanium substrate material. Platinized titanium anode integrates good physical and chemical properties of platinum and titanium.
We make the platinized titanium anode in shape of mesh, plate, rod, tube and other complex shape. Mesh and plate are normally in plating, electroanalysis and water treatment. Rod and tube normally use in cathodic protection. We have leading technology in platinized titanium anodes which are very smooth on anode surface and can be nice substitute of pure platinum anode. The purity of platinum coating is 99.99%. Also we supply design, manufacturing, recoating and repair service.
Production Method:
Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.
Three Procedures:
1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.
2. Brushing
Drying
After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.
Then, heat treatment will be going on after drying.
The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.
OUR COMPANY
Baoji Ruicheng Titanium Metal Co., Ltd. is an enterprise specializing in the production of titanium metal products. The company's core products are titanium electrodes, platinum-titanium electrodes, ruthenium-titanium electrodes, ruthenium-iridium-titanium electrodes, iridium-tantalum-titanium electrodes, etc.
