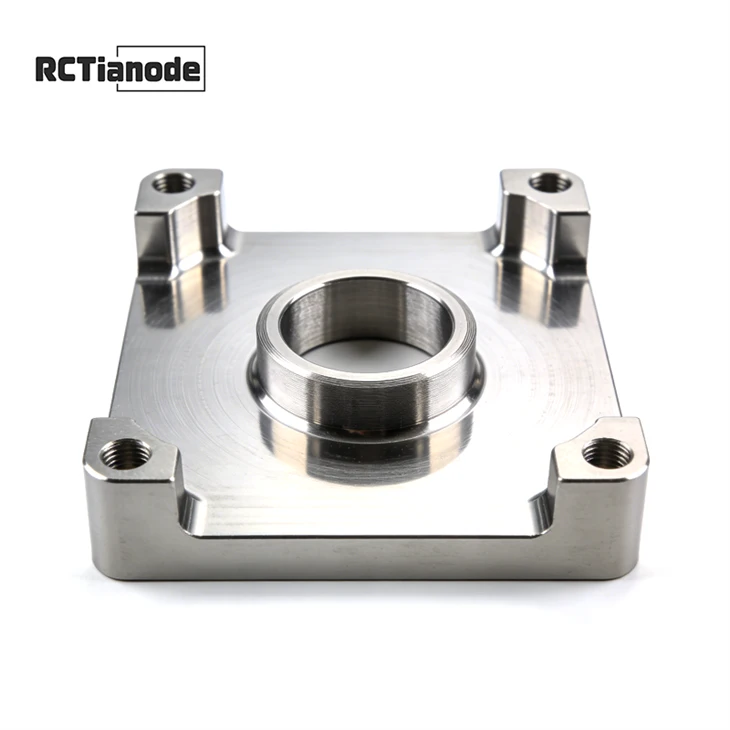

Titanium Build Plates for Additive Manufacturing Factory

Product Description

Our GR5 Titanium Build Plates for Additive Manufacturing (also known as Ti-6Al-4V Grade 5 substrates) serve as the essential, high-precision foundation for metal 3D printing systems, including SLM (Selective Laser Melting), DMLS (Direct Metal Laser Sintering), and EBM (Electron Beam Melting).

As the critical base platform on which high-performance metal parts are printed, these titanium build plates provide the superior dimensional stability, exceptional parallelism, and ultra-flatness required to maintain micrometer-level precision and process consistency throughout intense thermal manufacturing cycles. Sourced directly from our factory, every build plate undergoes advanced metallurgy and precision finishing to ensure maximum part adhesion, minimal warping, and predictable repeatability across production runs.

GR5 titanium is an alpha-beta titanium alloy composed of approximately 90% titanium, 6% aluminum, and 4% vanadium. This optimized chemistry delivers an extraordinary strength-to-weight ratio, low thermal expansion, and excellent corrosion resistance, making it the global gold standard for industrial aerospace, medical, and high-tech additive manufacturing platforms.

Technical Specifications & Mechanical Properties

Mechanical Properties (At Room Temperature):

• Material Grade: Certified GR5 Titanium Alloy / Ti-6Al-4V (Grade 5)
• Tensile Strength (Rm): Greater than or equal to 895 MPa (annealed substrate), ensuring the base withstands immense pulling forces during printing.
• Yield Strength (Rp0.2): Greater than or equal to 825 MPa (annealed substrate).
• Elongation (A5): Greater than or equal to 10 - 15%, providing excellent fracture toughness under thermal stress.
• Material Density: 4.43 - 4.51 g/cm3 (Offering high specific strength, twice that of 316L stainless steel, preventing platform sagging in large-format printers).
• Flatness Tolerance: Controlled within 0.05 mm - 0.1 mm (or custom micrometer-level specifications upon request).
• Parallelism: High-precision alignment to prevent reoat-blade crash.

Advanced Production Process

To ensure absolute consistency and structural integrity, our titanium build plates are manufactured using a rigorous multi-step factory process:

1. Vacuum Melting: Double or triple Vacuum Arc Remelting (VAR) to completely eliminate impurities and ensure a uniform, defect-free chemical composition.
2. Precision Forging & Rolling: Controlled multi-directional deformation processing to refine the grain structure, maximizing fatigue resistance.
3. Stress Relief Heat Treatment: Vacuum annealing and solution aging to eliminate internal residual stresses, preventing the plate from bowing during post-machining or wire EDM cutting.
4. CNC Machining & Grinding: Precision CNC finishing to achieve exact mounting hole configurations, thread specifications, and perimeter chamfers.
5. Surface Conditioning: Double-disc grinding, precision polishing, or controlled acid pickling to achieve the optimal surface roughness (Ra) for ideal first-layer powder/laser adhesion.

Industrial Applications

1.Aerospace & Defense:

• Serves as the primary substrate for printing lightweight structural aerospace brackets, engine compressor blades, rocket propulsion parts, fuel tank components, and high-fatigue missile structures.

2.Medical & Biomedical Engineering:

• Fully biocompatible and non-toxic, ideal for the additive manufacturing of patient-specific orthopedic implants (joint replacements, cranial plates), dental structures, and porous titanium scaffolds.

3.Industrial & Chemical Processing:

• Exceptional corrosion and chemical resistance allows for the printing of high-temperature tooling, advanced heat exchangers, chemical reactor internals, and specialized marine/offshore hardware.

Customization Options & Ordering Details

As an OEM/ODM factory, we support full customization to match any industrial 3D printer model (e.g., EOS, Renishaw, Concept Laser, SLM Solutions, BLT):

• Custom Dimensions: Available in circular, square, rectangular configurations, or custom shapes up to large-format printing requirements.
• Edge & Mounting Features: Pre-drilled mounting holes, counterbores, threaded locating holes, and specialized handling slots.
• Minimum Order Quantity (MOQ): 1 piece (Highly supportive of machine calibration, laboratory testing, and R&D prototyping).
• Export Packaging: Meticulously packed with anti-scratch EPE foam and heavy-duty ISPM-15 compliant wooden cases to guarantee rust-free and damage-free global delivery.

Contact Us for Factory-Direct Quotes

Looking for a reliable manufacturing partner for your metal 3D printing build plates? Contact our technical sales team today for an accurate wholesale price, engineering drawing validation, or material certification. We provide comprehensive direct-factory support worldwide within 24 hours!
