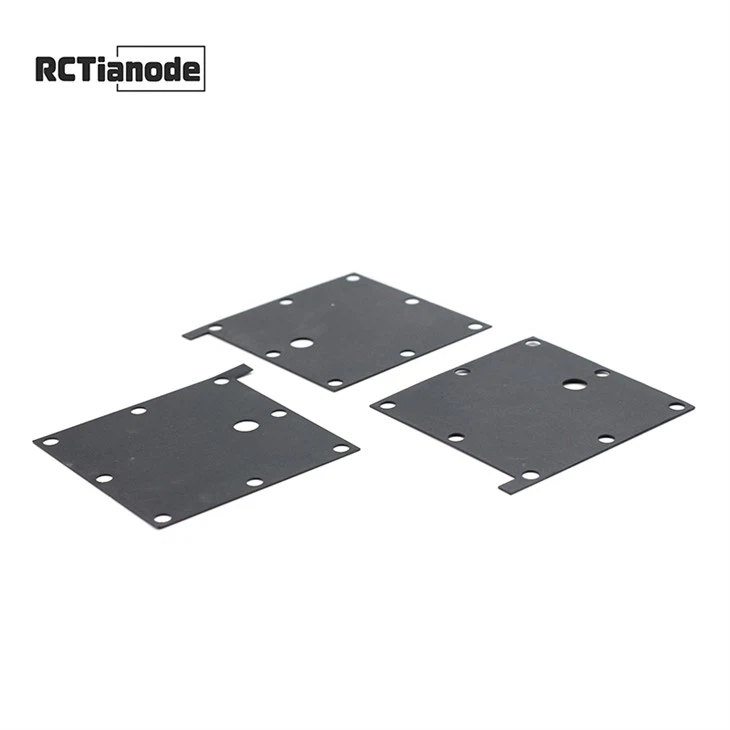

MMO Titanium Mesh Anode

Introduction

MMO anodes are made up of two parts-base metal and coating. They are generally available in different forms such as sheet, mesh, perforated plate, rod, or wire.MMO titanium Mesh Anode is very thin layer (few microns) so that it can be applied on the base metal in a variety of ways. Depending on the application, this coating of MMO titanium mesh anode can be a combination of two or more metal oxides such as oxides of iridium, tantalum, ruthenium.

Specification

Name:MMO titanium Mesh Anode

Base material:Gr1,Gr2

Current range:< 2000A/㎡

Operating temperature: 25~50℃

Surface metal:Ru+Ir

Coating thickness:3 to 10 microns

Applied Environment:PH 0-14

Application of MMO titanium mesh anode:chlor-alkali industry,chlorate industry,ionized water electrolysis,food tableware disinfection,electrolysis of seawater chlorine production,circulating water descaling,electrodealysis,sewage treatment and other industries.

Advantages of coated titanium electrodes

1,The size of the anode is stable, and the distance between electrodes does not change during the electrolytic process, which ensures that the electrolytic operation can be carried out under the condition of stable cell voltage.

2,Low working voltage, low power consumption, DC power consumption can be reduced by 10-20%.

3,Titanium anode has long service life and strong corrosion resistance.

4,It can overcome the dissolution of graphite anode and lead anode ,and avoid the contamination of electrolyte and cathode products.

5,High current density, small overpotential, high catalytic performance of electrode, can improve production efficiency.

6,Using titanium anode in chlor-alkali production,the product has high quality, high chlorine purity, no Co2, and high alkali concentration, which can save heating steam and energy consumption.

7,It can avoid short circuit problem after lead anode deformation and improve current efficiency.

8,The shape is easy to make and works with high precision.

9,Titanium matrix can be reused.

10,Low overpotential characteristics, the electrodes between the electrode surface and electrode bubbles are easy to remove, and can reduce the electrolytic cell voltage.

FAQ

1,Which industries does Ruicheng service?

Chemical,metallurgy,petroleum,textile,marine,environmental protection etc.

2,How can I stay updated on recent news and product announcements?

New products can be found within the products section in our website.You can regular visit the website whenever you want and follow our pages to stay updated on company and related news.

3,Do you manufacture other products besides titanium anodes?

Besides titanium anodes,we also manufacturer titanium bars,wires, tubes,sheets,washers,screws etc.
