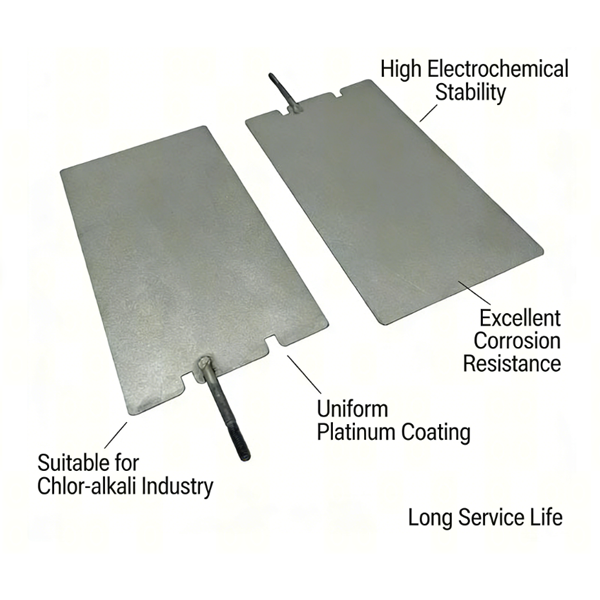

Coated Titanium Platinum Plate With Terminal

Coated Titanium Platinum Plate With Terminal
Coated:platinum
Dimension：as required
Application:disinfection

Product Description

Product Name	Coated Titanium Platinum Plate With Terminal
Coating	Platinum
Coating Thickness	0.3-2.5μm
Dimension	As required
Base Material	Grade 1 / Grade 2 Titanium (ASTM B265)
Current Density	< 2000 A/m²
Operating Temperature	25°C-80°C
PH Range	0-14

Applicaiton

Chlor-Alkali Industry (Electrolytic Chlorine / Caustic Soda)
Used in saturated brine electrolysis to produce chlorine, hydrogen, and sodium hydroxide.
High-End Electroplating / Electronics Electroplating
Suitable for precious metal plating (gold, silver, rhodium), PCB circuit board copper/nickel plating, and hard chrome plating for automotive components.
Industrial Water Treatment & Disinfection
Including electrochemical oxidative degradation of organic wastewater from dyeing, pharmaceutical, coking, and other industries; electrolytic production of sodium hypochlorite from seawater/drinking water for disinfection; and advanced treatment of landfill leachate. Generates hydroxyl radicals to efficiently decompose pollutants.
Cathodic Protection (Marine / Large Storage Tanks)
Serves as an auxiliary anode for impressed current cathodic protection of offshore platforms, dock steel piles, long-distance pipelines, and large crude oil storage tanks, delivering stable current output over extended periods in seawater and soil environments.
