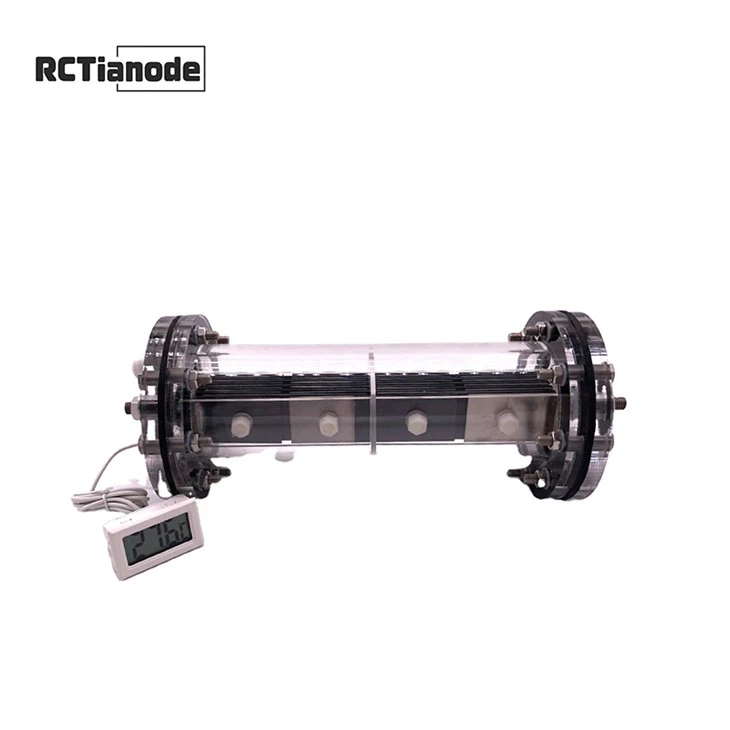

Alkaline Electrolytic Cell

Production Introduction

Alkaline electrolytic cell for water electrolysis machine, the cell body is made of abs plastic material, the interior can be equipped with ruthenium-iridium coating, platinum-iridium coating, single-coated platinum-coated titanium electrode, ph value is 8-11. With stable and good electrolysis effect, it is widely used in household electrolyzed water machines, disinfection water machines and large water plants.

[Working principle] The alkaline electrolytic cell used in this water electrolysis machine adopts titanium electrode and titanium platinum electrode, ionic membrane, which has stable electrolysis effect. It has been widely used in household water electrolysis machine and disinfection water machine. The factory can be used, with low energy efficiency, stable electrolysis, long life and low price! Titanium electrode is a key component in the water electrolysis cell. and the quality of the metal electrode directly affects the water machine of quality. How to choose alkaline  electrodes cell should be reasonably selected according to the different working properties. In the field of water treatment, metal electrodes must own the following basic requirements: 1. Must be good electrical conductivity; 2. Should be strong corrosion resistance; 3. Good mechanical strength and processing performance; 4. Should be long working life; 5. Good electrocatalytic performance and so on

 In the field of the water treatment, especially in the process of water electrolysis, there are various strong oxidizing substances in the water, such as: O3, H2O2, HCLO and so on.  the anode is often commutated. Therefore, special functional electrodes must be used for it. After years of research, our company has developed a long-life electrode suitable for the field of water treatment—titanium metal coated electrode. This kind of electrode is coated with platinum group noble metal oxide with high electrocatalytic performance, strong anti-oxidation performance and good electrical conductivity on the pure titanium substrate, and is an insoluble anode. The characteristics of the anode are: 1. Titanium has the characteristics of light specific gravity, good strength, corrosion resistance and good performance, especially the anti-moisture chlorine performance is unmatched by other metal materials; for example: there are trace chlorine ions in the electrolysis of water The stainless steel plate will quickly undergo pitting corrosion and shorten the life of the electrode, while titanium does not have these problems; 2. Due to the addition of a variety of platinum group precious metals in the coating, the current efficiency is high and the electrical conductivity is high and Good electrocatalytic performance, It also has strong oxidation resistance and  long working life and energy saving. 3. It has a very good reversal performance.

【Advantages of alkaline electrolytic cell 】

 1. The anode size is stable, and the distance between electrodes does not change during the electrolysis process, which can ensure that the electrolysis operation is carried out under the condition of stable cell voltage.

 2. The working voltage is low, and the power consumption is small,  Also the DC power consumption can be reduced by 10-20%.

 3. The titanium anode has long working life and strong corrosion resistance.

 4. It can overcome the dissolution problem of graphite anode and lead anode, and avoid the pollution of electrolyte and cathode products.

 5. High current density, small overpotential, and high catalytic activity of the electrode, which can effectively capture high production efficiency.

 6. In the production of chlor-alkali, the titanium anode is used, the product quality is high, the chlorine gas is high in purity, does not contain Co2, and the alkali concentration is high, it can help to save heating steam and energy consumption.

 7. Titanium Electrodes can avoid the short circuit problem after the deformation of the lead anode and improve the current efficiency.

 8. The shape of Titanium Electrodes is easy to make and can be high-precision.

 9. The titanium substrate can be reused.

 10. Low overpotential characteristics, easy removal of air bubbles on the surface between electrodes and electrodes, which can effectively reduce the voltage of the electrolytic cell.

alkaline electrolytic cell

alkaline electrolytic cell

I. Technical indicators:
