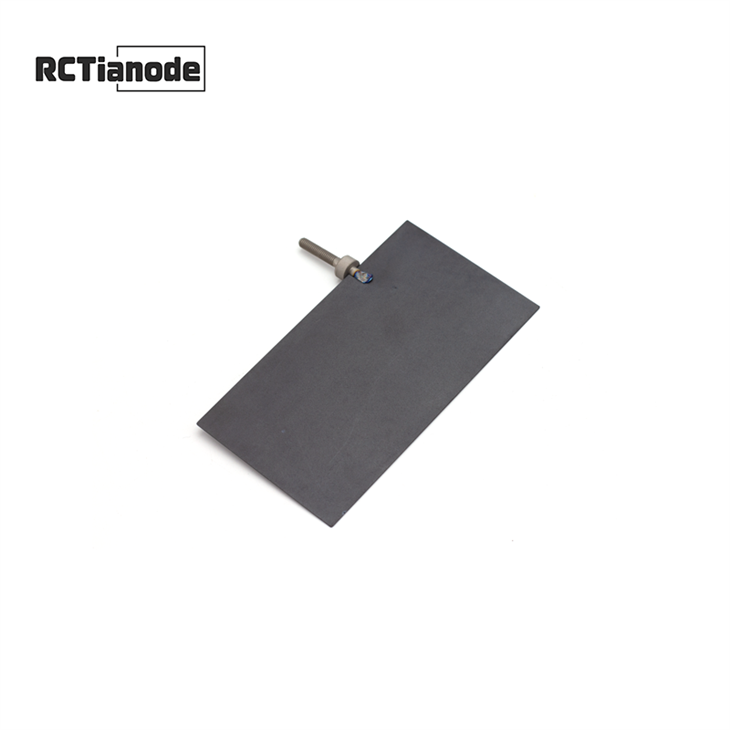

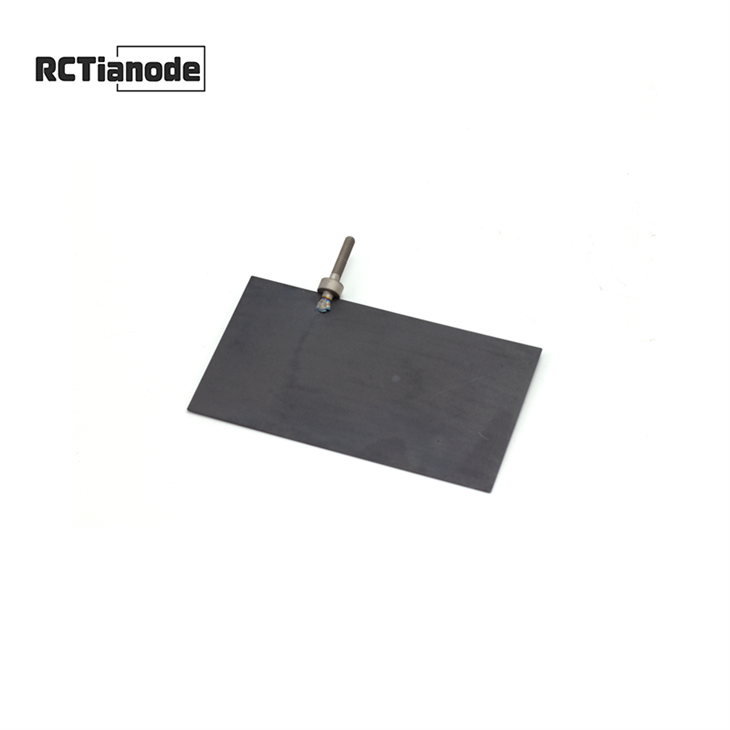

Ru Ir MMO Titanium Anode Plate
1.Product Name: MMO Ruthenium-Iridium Coated Titanium Anode Plate
2.Base Material Grade: Gr1 / Gr2 Pure Titanium (Compliant with ASTM B265)
3.Coating Technology: Mixed Metal Oxide (MMO) Ruthenium-Iridium (Ru-Ir)
4.Coating Thickness: 8 - 10 μm (Strict Tolerance Control)
5.Appearance & Color: Uniform Black (Fully Sintered Noble Metal Oxide)
6.Dimensions / Size: 100% Customized Based on Customer Drawings (As Requested)
7.Core Application: Sodium Hypochlorite Generator, Water Electrolysis, Sewage Treatment, Electroplating
Products Description
Our MMO Ruthenium-Iridium Coated Titanium Anode Plate is engineered with a multi-layer mixed metal oxide (MMO) coating professionally sintered onto a premium Grade 1 or Grade 2 commercially pure titanium substrate. By utilizing an advanced Ruthenium-Iridium (Ru-Ir) precious noble metal formulation, these industrial-grade electrodes deliver the ultimate balance of superior electrochemical activity, high chlorine evolution efficiency, and exceptional lifetime stability in harsh brine and chlorinated environments.
We specialize in customized precision fabrication, manufacturing every MMO titanium electrode plate strictly according to your engineering drawings to guarantee a perfect structural fit. Utilizing an optimized 8-10μm coating thickness, our uniform black anodes are the premier choice for efficient chlorine evolution, sodium hypochlorite generation, saltwater chlorination, and heavy-duty industrial wastewater electrodialysis.
Complete Customization Capabilities
We offer full OEM and ODM services to fit custom electrolyzer housings. Each MMO Ru-Ir titanium anode plate is manufactured precisely according to your project's unique technical drawings and material specifications.
| Customization Option | Industrial Capability & Technical Details |
|---|---|
| Substrate Material | Premium Gr1 / Gr2 Pure Titanium (Compliant with ASTM B265) |
| Coating Type | Mixed Metal Oxide (MMO) Ruthenium-Iridium (Ru-Ir) |
| Coating Thickness | 8 - 10 μm (Strict tolerance control for maximum operational lifespan) |
| Appearance & Color | Uniform Industrial Black (Multiple high-temperature thermal sintering) |
| Available Dimensions | Length: Up to 1500 mm | Width: Up to 1200 mm (Larger custom sizes on request) |
| Available Shapes | Solid plate, perforated plate, slotted mesh plate, ribbon strip, or complex geometry |
| Substrate Thickness | 0.5 mm – 3.0 mm (Or tailormade as required by the electrochemical cell) |
| Coating Distribution | Single-sided or double-sided coating based on your current density needs |
Industry Applications
Our Ru-Ir coated titanium electrode plates are highly demanded across global electrochemical and water purification engineering sectors:
-
Sodium Hypochlorite Generation: On-site active chlorine bleach production for municipal drinking water and industrial water treatment.
-
Industrial Electrodialysis (ED): High-efficiency brackish water desalination, chemical separation, and zero-liquid-discharge (ZLD) wastewater processing.
-
Salt Water Chlorination: Used as heavy-duty electrolytic cells in large-scale commercial swimming complexes and marine bio-fouling prevention systems.
-
Cathodic Protection (ICCP): Impressed current cathodic protection for marine structures, underground pipelines, and steel rebar.
Why Choose Our MMO Ru+Ir Titanium Anode Plates?
| Business Advantage | Description & Customer Impact |
|---|---|
| Direct Manufacturer | 100% factory-direct pricing with zero middleman commissions. Direct one-on-one technical support from senior electrochemical engineers. |
| 15+ Years Industry Expertise | Specialized in high-performance MMO coated titanium electrodes and precious metal sintering technology with a certified global track record. |
| Short & Reliable Lead Time | Fast turnaround within 15–25 business days after order confirmation to meet tight project and maintenance schedules. |
| Global Export Shipping | Extensive logistics experience exporting certified titanium components to over 30 countries worldwide with secure seaworthy packaging. |
Packaging & Product Marking
100% Traceability: Each batch of anode plates is marked with the corresponding Heat Number and dimensions for full tracking from raw sponge titanium to the final product.
Protective Packing: Wrapped individually in anti-static, moisture-proof shock absorption materials and packed into reinforced export wooden crates to prevent any scratching or friction on the precious Ru-Ir coating during international transit.
Order Guidance & Inquiries
We provide optimized electrochemical solutions for both brand-new engineering projects and existing electrolyzer cell replacement electrodes.
To help our technical team design a tailored quotation with maximized service life, please provide the following details along with your inquiry:
1.Detailed Engineering Drawings (Dimensions, shapes, and substrate thickness).
2.Operating Current Density (e.g., < 2000 A/m²).
3.Electrolyte Composition (Salt concentration, temperature, pH value, and presence of any fluoride/organics).
4.Targeted Service Life Expectancy.
Contact us today to get an instant engineering quote and a free material catalog!
